Sector 3: Technology

Europe’s own non-dependent ”Large Deployable Reflector Subsystem” (LDRS)

Animation of LEA-x5 in space © HPS GmbH

LEA Logo – Large European Antenna
Chapter 3.1.

Milestone History

LEA (Large European Antenna)

  • Planned DateMilestoneAchieved date
  • 11/2017 (√)Kick-Off Meetingachieved on 02.11.2017
  • 01/2018 (√)Mission Selection Workshopperformed on 18.01.2018
  • 03/2018 (√)Specification Definition Workshopperformed on 22.03.2018
  • 07/2018 (√)Preliminary Design Review (PDR)performed on 20.07.2018
  • 10/2018 (√)Sample & Breadboard Campaign Status Meeting and 1st EC Reviewperformed on 22.01.2019
  • 04/2019 (√)Critical Design Review (CDR)performed on 11.04.2019
  • 05/2020 (√)Breadboard Qualification achieved on 01.05.2020
  • 03/2021 (√)Test Readiness Review (TRR)performed on 22.03.2021
  • 06/2021 (√)Final Reviewperformed on 15.06.2021
Chapter 3.2.

Specifications

of LEA-x5 PFM

ParameterDeployable reflector subsystem specs LEA-Follow-Ons
Antenna TypeSingle- or multi-feed offset parabolic circular apertureFor LEA project: just test-feedFlight model feed cluster/chains
Frequency BandX-band for reflector Mesh targets Ku-bandPFM: X-band up to 10.65 GHz;
RF-tests on mesh: up to 18.7 GHz
Technologies and processes target Ka-band
Dimensions (deployed)RF-aperture diam.: > 5.1 mmaximum diameter of the reflector ring structure: > 6.0 mReflector/arm design fit fordiameter/lengths of up to 20 m (25 m tbc.)
F/D (lengths/diam.)1.0Requirements are set to fulfill both earth observation as well as telecom missionsF/D adaptable between 0.5 and 2.0
Surface Accuracyup to λ /50 RMS
(RMS ≤ 0.56 mm)
Pointing Accuracy0.04° (tbc) beam de-pointing half cone angleAn active pointing mechanism is not foreseen as baseline in the LEA-PFM-developmentActive pointing mechanism is under evaluation and can be implemented
Reflective surfaceKnitted metallic mesh of gold-plated tungsten wireRF losses ≤ 0.1 dB for incidence angle ≤ 40°
Electronics and SoftwareSensors, heaters, harness, control electronics, EGSEControl electronics in LEA only EM level, architecture: flightFlight model onboard control electronics and software

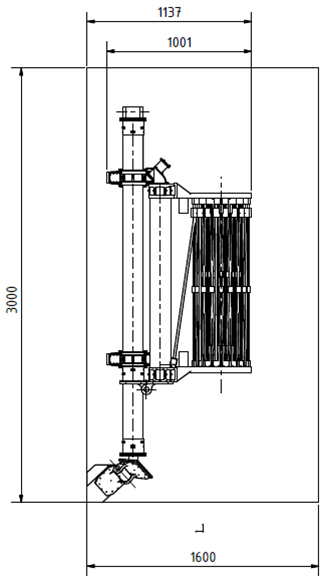

Stowed LEA dimensions © HPS GmbH

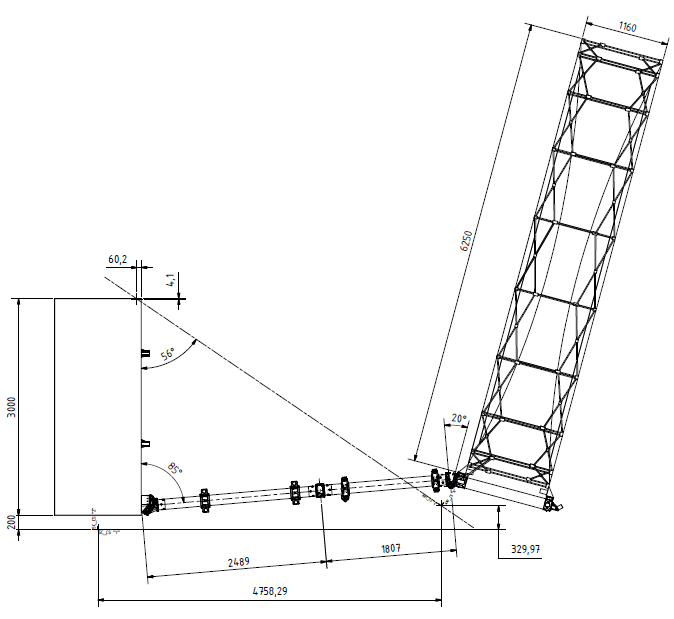

Deployed LEA dimensions © HPS GmbH

Chapter 3.3.

Hardware

of LEA – X5 PFM

Hardware of LEA – X5 PFM © HPS &LSS

Hardware of LEA – X5 PFM © HPS &LSS
